INDEX > Product > Ducted Direct Drive Fan Coil Units Motor Series
Details description

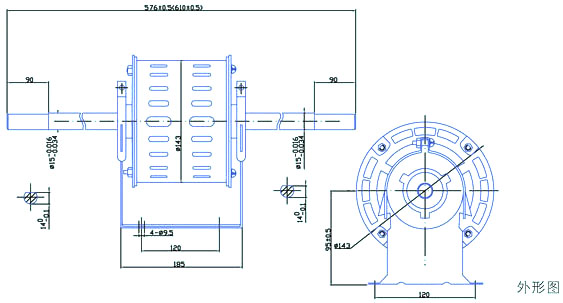

Appearance and installation dimensions
model | Output power | Working condition of reference speed | Insulation class | noise (dB) | voltage (V) | frequency (Hz) |
| YSK-200-4 | 200 | 1200/1100/1000 | B | <52 | 220/240 | 50/60 |
| YSK-250-4 | 250 | 1200/1100/1000 | B | <53 | 220/240 | 50/60 |
| YSK-300-4 | 300 | 1200/1100/1000 | B | <53 | 220/240 | 50/60 |
| YSK-375-4 | 375 | 1250/1150/1050 | B | <54 | 220/240 | 50/60 |
| YSK-450-4 | 450 | 1250/1150/1050 | B | <54 | 220/240 | 50/60 |
| YSK-550-4 | 550 | 1300/1250/1150 | B/F | <54 | 220/240 | 50/60 |
| YSK-750-4 | 750 | 1350/1250/1150 | B/F | <55 | 220/240 | 50/60 |
| YSK-180-6 | 180 | 850/750/630 | B/F | <58 | 220/240 | 50/60 |
| YSK-250-6 | 250 | 850/750/630 | B/F | <53 | 220/240 | 50/60 |
| YSK-300-6 | 300 | 900/800/700 | B/F | <52 | 220/240 | 50/60 |
| YSK-375-6 | 375 | 900/800/700 | B/F | <54 | 220/240 | 50/60 |
