Three-phase Fan Cooled Water Chiller Fan Motor
INDEX > Product > Three-phase Fan Cooled Water Chiller Fan Motor
Details description

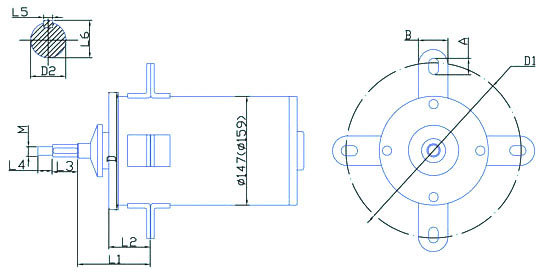

Appearance and installation dimensions
| 型号 | A | B | D | D1 | D2 | M | L1 | L2 | L3 | L4 | L5 | L6 |
| YS-250-6 | 18 | 11 | 150 | 200 | 15 | 12 | 145 | 110 | 48 | 21 | - | - |
| YS-300-6 | 18 | 11 | 150 | 200 | 15 | 12 | 145 | 110 | 48 | 21 | - | - |
| YS-450-6 | 18 | 11 | 150 | 190 | 15 | 12 | 104 | 76 | 36 | 18 | 5 | 17 |
| YS-550-6 | 18 | 11 | 150 | 212 | 15 | 12 | 97 | 67 | 70 | 18 | - | - |
| YS-750-6 | 18 | 11 | 150 | 188 | 16 | 16 | 116 | 80 | 20 | 20 | - | - |
| YS-750-8 | 18 | 11 | 165 | 210 | 15 | 10 | 124 | 94 | 39 | 18 | 5 | 17 |
| YS-1100-8 | 15 | 14 | 165 | 237 | 19 | 12 | 124 | 75 | 39 | 23 | 6 | 21.5 |
Technical parameters
model | voltage (V) | frequency (Hz) | output power(W) | Working condition of reference speed | current (A) | input power (W) | Insulation class | noise (dB) |
| YS-250-6 | 380 | 50 | 250 | 930 | 0.52 | 355 | B | <46 |
| YS-300-6 | 380 | 50 | 300 | 950 | 0.75 | 428 | B | <46 |
| YS-370-6 | 380 | 50 | 370 | 950 | 0.85 | 498 | B | <48 |
| YS-450-6 | 380 | 50 | 450 | 940 | 1.05 | 608 | B | <48 |
| YS-550-6 | 380 | 50 | 550 | 940 | 1.25 | 720 | B | <52 |
| YS-750-6 | 380 | 50 | 750 | 930 | 1.85 | 950 | B | <53 |
| YS-1100-6 | 380 | 50 | 1100 | 930 | 3.2 | 1400 | B | <59 |
| YS-370-8 | 380 | 50 | 370 | 710 | 1.36 | 571 | B | <48 |
| YS-550-8 | 380 | 50 | 550 | 710 | 2.5 | 750 | B | <48 |
| YS-750-8 | 380 | 50 | 750 | 710 | 2.8 | 839 | F | <58 |
| YS-1100-8 | 380 | 50 | 1100 | 710 | 4.0 | 1286 | F | <60 |
| YS-370-10 | 380 | 50 | 370 | 560 | 1.4 | 475 | B | <46 |
| YS-2200-8 | 380 | 50 | 2200 | 720 | 5.8 | 2850 | F | <62 |
