INDEX > Product > Motor For Air Conditioner
Details description

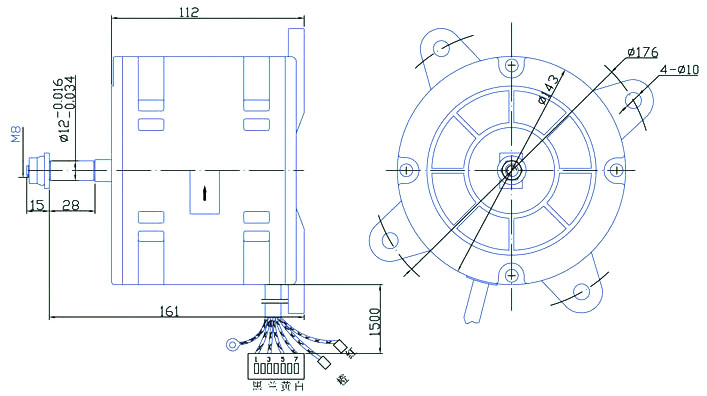

Appearance and installation dimensions
Technical parameters
model | voltage (V) | frequency (Hz) | standard output power | current (A) | Working condition of reference speed | capacitance(μF) |
| YDK83-20-4 | 220 | 50 | 20 | 0.25 | 1320/1200/1050 | 2.0 |
| YDK93-12-4 | 220 | 50 | 12 | 0.14 | 1320/1200/1050 | 1.0 |
| YDK93-16-4 | 220 | 50 | 16 | 0.17 | 1320/1200/1050 | 1.0 |
| YDK120-30-8 | 220 | 50 | 30 | 0.56 | 530/430/330 | 3 |
| YDK120-50-8 | 220 | 50 | 50 | 0.8 | 560/460/360 | 4 |
| YDK139-100-10 | 220 | 50 | 100 | 1.2 | 460/400/330 | 6 |
| YDK139-120-10 | 220 | 50 | 120 | 1.4 | 500/430/350 | 6 |
