INDEX > Product > Motor For Air Conditioner
Details description

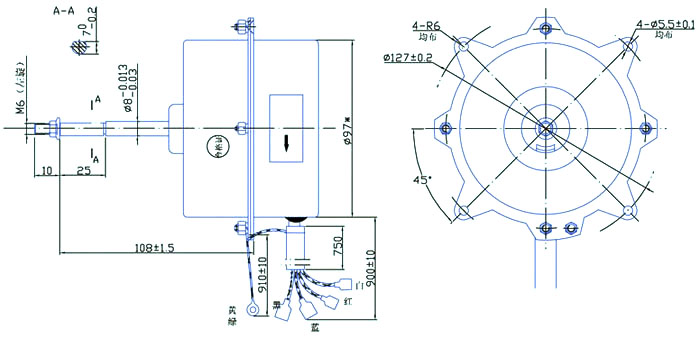

Appearance and installation dimensions
Technical parameters
Motor model | voltage (V) | frequency (Hz) | standard output power | current (A) | Working condition of reference speed | Capacitance(μF) |
| YDK95/20-6 | 220 | 50/60 | 20 | 0.22 | 800 | 1.5 |
| YDK95/25-6 | 220 | 50/60 | 25 | 0.3 | 800 | 2 |
| YDK95/35-6 | 220 | 50/60 | 35 | 0.4 | 800 | 3 |
| YDK120/50-6 | 220 | 50/60 | 50 | 0.46 | 800 | 4 |
| YDK120/60-6 | 220 | 50/60 | 60 | 0.62 | 800 | 4 |
| YDK120/70-6 | 220 | 50/60 | 70 | 0.71 | 800 | 5 |
