Marine fan motor
INDEX > Product > Marine fan motor
Details description

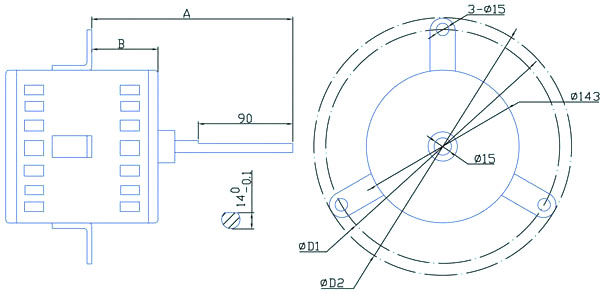

Appearance and installation dimensions
Technical parameters
| Standard output power | With fan model | A | D1 | D2 | B | |
| 90W-6 | 200W-4 | SYZ7-71 | 160 | 215 | 240 | 50 |
| 90W-6 | 200W-4 | SYZ7-7111 | 160 | 215 | 240 | 50 |
| 200W-6 | 250W-4 | SYZ7-81 | 200 | 250 | 275 | 70 |
| 90W-6 | 150W-4 | SYZ7-411 | 140 | 280 | 305 | 30 |
| 250W-6 | 375W-4 | SYZ7-71 | 160 | 280 | 305 | 50 |
| 250W-6 | 375W-4 | SYZ7-7111 | 160 | 280 | 305 | 50 |
| 250W-6 | 450W-4 | SYZ7-91 | 200 | 280 | 305 | 70 |
| 200W-6 | 250W-4 | SYZ7-911 | 200 | 250 | 275 | 70 |
| 375W-6 | 450W-4 | SYZ7-9111 | 200 | 280 | 305 | 70 |
| 375W-6 | 550W-4 | SYZ7-81 | 210 | 307 | 332 | 70 |
| 375W-6 | 550W-4 | SYZ7-811 | 210 | 307 | 332 | 70 |
| 450W-6 | 550W-4 | SYZ7-101 | 210 | 307 | 332 | 70 |
| 450W-6 | 550W-4 | SYZ7-1011 | 210 | 307 | 332 | 70 |
